Featuring hybrid metal manufacturing capabilities, MM010S boasts the Meltio DED print head with dual wire and hot wire and the FANUC control system, software, and milling head to post-process parts during the production cycle
Custom-Build Your 3D Printer
CUSTOM-BUILD YOUR MOBILE ADDITIVE MANUFACTURING SHIPPING CONTAINER
Each SAMM Tech unit is built with everything you need to 3D print in the field, including materials supply and software programs. Customize your unit to fit specific applications and material requirements by selecting from the options below or contact us to schedule a design meeting with our engineering team for an even more ‘custom-fit’ machine.
Container Length
- 10-ft.
- 20-ft.
- 40-ft.
- 53-ft.
Container Height
- Standard
- High cube
Production Material
- Metal
- Composite
- Dual (metal and composite)

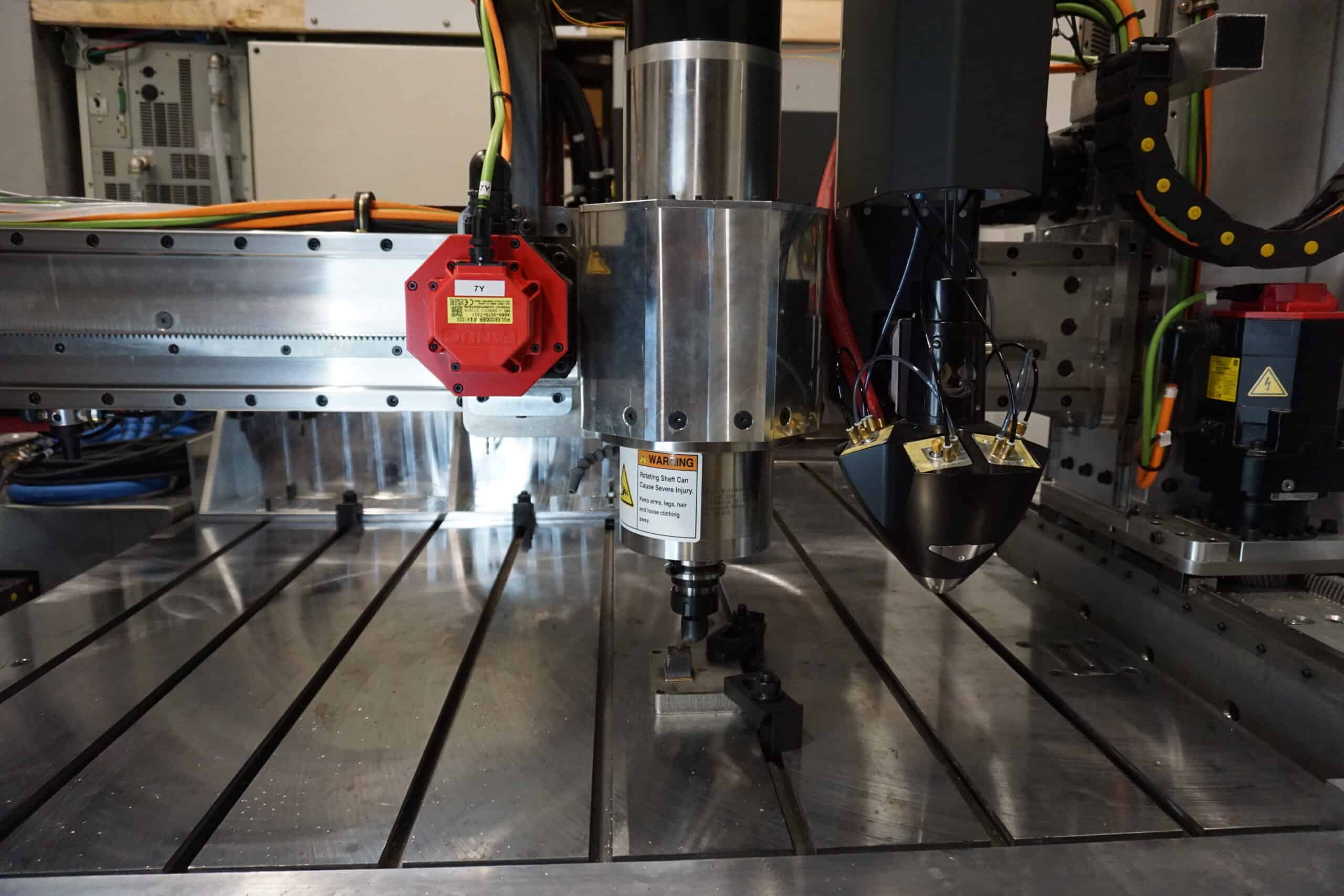

Subtractive Manufacturing Capabilities
- Milling head
- Routing head
Options
- Single, dual, or multiple gantries
- 3 or 5-axis spindle
- Titanium printing chamber design
- Operator compartment air conditioning
- Climate control in the print chamber
- Renishaw probes (single gantry option, comes standard with dual gantry)
- Creaform MetraSCAN 3D Optical CMM Scanner
- Creaform VXinspect Software
- Creaform Polyworks® Software
- FANUC robotic arm for print head
- Trunnion table • Heated print bed
Cold Spray and Directed Energy Deposition (DED) 3D printing based on your print head selection and application specifications.
PRINTING AND CUTTING CAPABILITIES
- Max cutting speed 9.1m/min on aluminum
- Rapid movement speeds at 30m/min
- Metal DED printing at 11 kg/hr metal deposition rate of steel
- Spindle vibration displacement tolerance under 0.0001” at max speed resolution and repeatability 0.0007”
*Data based on utilization of Meltio and FANUC systems

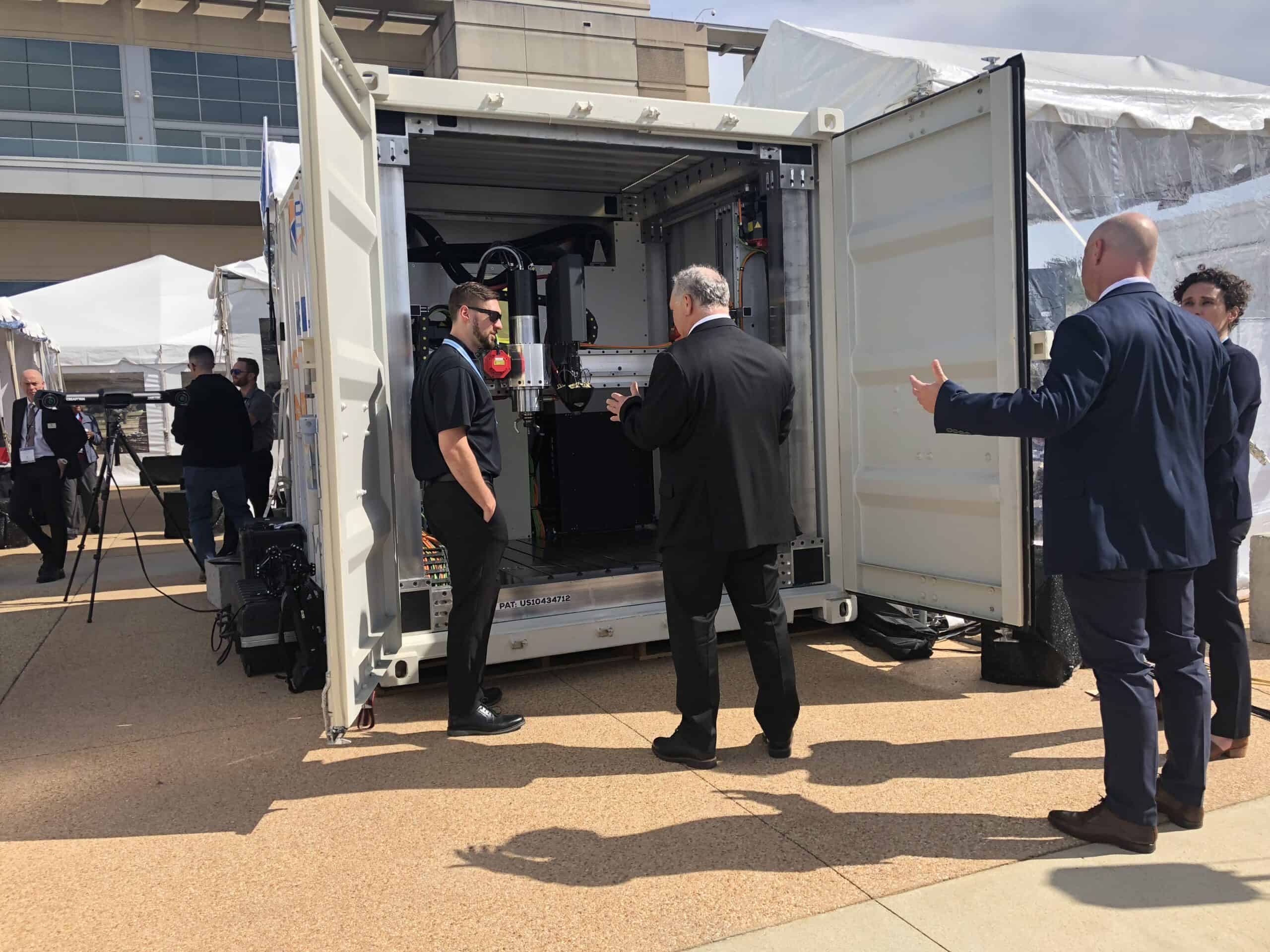

Model: SAMM-MM010S
Built inside of a 10-ft. shipping container, this model offers a 4-ft. x 4-ft. x 4-ft. prin surface and the ability to produce parts up to 64 cubic feet in size.
Specifications
- 4-ft. x 4-ft. x 4-ft. print area (64 cubic feet)
- Can print and mill parts in stainless steel, mild steel, carbon steel, titanium, and Inconel
- Patented gantry system (single)
- 8-tool magazine changer
- Automatic magazine changer
- Meltio DED with dual wire feeders and hot wire upgrade
- 30 SCFM output air compressor
- Cold air coolant gun for milling tool cooling
- FANUC control system and software
- Standard water-cooled spindle with stand alone water chiller
- 3-axis spindle

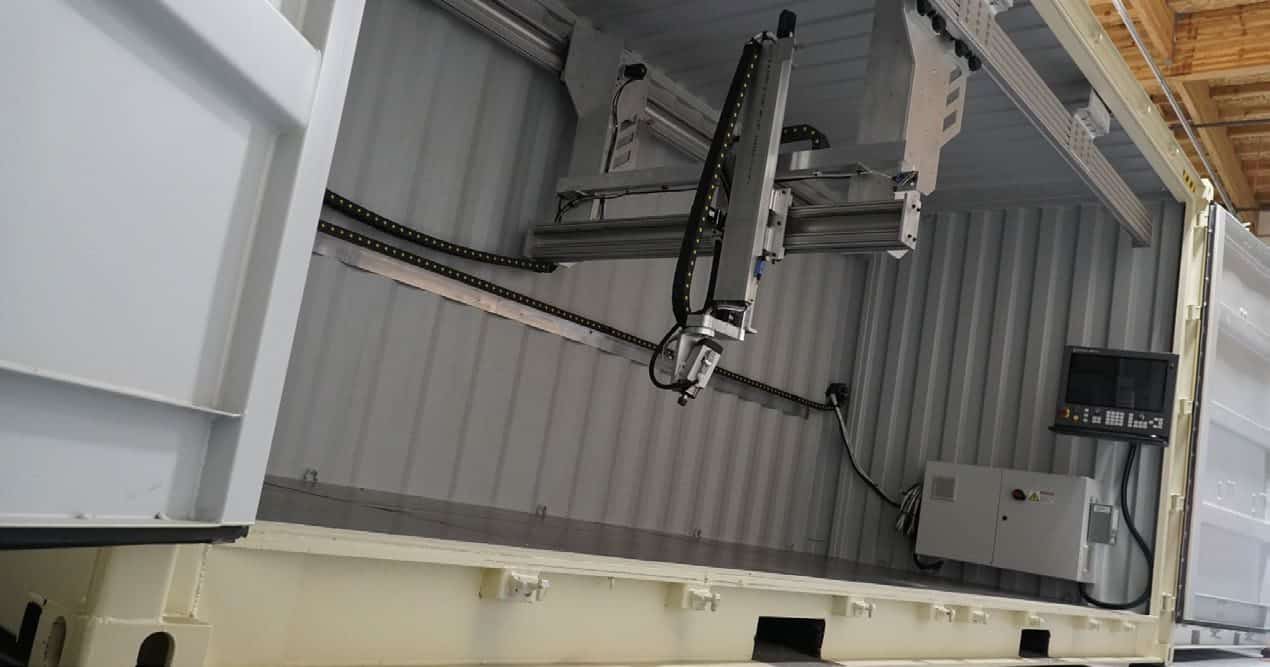

Model: SAMM-MM020S
Built inside of a 20-ft. shipping container, this model offers the largest print surface and the ability to produce parts up to 250 cubic feet in size.
Featuring hybrid metal manufacturing capabilities, MM020S boasts the Meltio DED print head with dual wire and hot wire and the FANUC control system, software, and milling head to post-process parts during the production cycle.
Specifications
- 5-ft. x 10-ft. x 4-ft. print area (200 cubic feet)
- Can print and mill parts in stainless steel, mild steel, carbon steel, titanium, and Inconel
- Manually adjustable print bed (dual)
- 10-tool magazine
- Automatic magazine changer
- Meltio DED with dual wire and hot wire
- Meltio software
- Air compressor
- Cold gun for milling
- FANUC control system and software
- Standard water-cooling spindle with chiller
- 3-axis spindle
- Renishaw probes
